H Fin Tubes Manufacturer & Supplier in India

Detailed Information

H Fin Tubes (or H Finned Tubes, Steel H®/Double H® Finned Surface Tubes) are high efficiency heat transfer tubes with H-shaped fins welded on the tube surface. They increase the heat transfer area, thereby improving thermal efficiency, reducing ash build-up and increasing durability in boilers, economizers, air preheaters, waste heat recovery systems and industrial heat exchangers. They are tough and suited for use in industrial applications involving high temperatures and pressures.

High-Performance H Fin Tubes for Efficient Heat Transfer Applications

Maximize Energy Savings with the superior H Fin Tube for all of your critical heat transfer applications including power plants, petrochemical plants, refinery industries, marine, cement and steel mills, and other industrial applications.

We offer to all major industrial companies that high-efficiency H Finned Tube made under the state of the art welding techniques, latest materials used for robust and rigid designs that provide high thermal performance and durability in even the roughest applications. With an emphasis on high thermal performance, low cost maintenance, and increased productivity we offer Fin Tubes solution that fulfills all the thermal requirements of industrial use.

We are a leading High Finned Tubes Manufacturer and Supplier in India and customize the Fin Tube solution in varied sizes, materials, shapes and international specifications.

What are H Fin Tubes?

H Fin tubes consist of two identical and rectangular fins, welded symmetrically to opposite sides of the bare tubes and forming an “H” shaped profile, thus increasing the outside surface area which increases heat transfer surface compared with bare tubes.

These tubes provide minimal and limited dust & fly ash build up due to this unique design & are widely used for Boilers, Economizers and Air pre-heaters where dust concentration is high.

These products are commonly referred to as:

  • H Fin Tubes
  • H Finned Tubes
  • Square H Type Fin Tube
  • Steel H® / Double H® Finned Surface Tubes
  • HFW Square Fin Tube
  • Double H Finned Tube

Cities We Delivered

New York City, Los Angeles, Chicago, Houston, Phoenix, Philadelphia, San Antonio, San Diego, Dallas, San Jose, Austin, Jacksonville, Fort Worth, Columbus, Charlotte, San Francisco, Indianapolis, Seattle, Denver, Washington, Boston, El Paso, Nashville, Detroit, Oklahoma City, Portland, Las Vegas, Memphis, Louisville, Baltimore, Milwaukee, Albuquerque, Tucson, Fresno, Mesa, Sacramento, Atlanta, Kansas City, Colorado Springs, Omaha, Raleigh, Miami, Long Beach, Virginia Beach, Oakland, Minneapolis, Tulsa, Tampa, Arlington, New Orleans, Wichita, Bakersfield, Cleveland, Aurora, Anaheim, Honolulu, Santa Ana, Riverside, Corpus Christi, Lexington, Henderson, Stockton, Saint Paul, Cincinnati, St. Louis, Pittsburgh, Greensboro, Lincoln, Anchorage, Plano, Orlando, Irvine, Newark, Durham, Chula Vista, Toledo, Fort Wayne, St. Petersburg, Laredo, Jersey City, Chandler, Madison, Lubbock, Scottsdale, Reno, Buffalo, Gilbert, Glendale, North Las Vegas, Winston-Salem, Chesapeake, Norfolk, Fremont, Garland, Irving, Hialeah, Richmond, Boise, Spokane, Baton Rouge, Tacoma, San Bernardino, Modesto, Fontana, Des Moines, Moreno Valley, Santa Clarita, Fayetteville, Birmingham, Oxnard, Rochester, Port St. Lucie, Grand Rapids, Huntsville, Salt Lake City, Frisco, Yonkers, Amarillo, Glendale, Huntington Beach, McKinney, Montgomery, Augusta, Aurora, Akron, Little Rock, Tempe, Columbus, Overland Park, Grand Prairie, Tallahassee, Cape Coral, Mobile, Knoxville, Shreveport, Worcester, Ontario, Vancouver, Sioux Falls, Chattanooga, Brownsville, Fort Lauderdale, Providence, Newport News, Rancho Cucamonga, Santa Rosa, Peoria, Oceanside, Elk Grove, Salem, Pembroke Pines, Eugene, Garden Grove, Cary, Fort Collins, Corona, Springfield, Jackson, Alexandria, Hayward, Clarksville, Lakewood, Lancaster, Salinas, Palmdale, Hollywood, Springfield, Macon, Kansas City, Sunnyvale, Pomona, Killeen, Escondido, Pasadena, Naperville, Bellevue, Joliet, Murfreesboro, Midland, Rockford, Paterson, Savannah, Bridgeport, Torrance, McAllen, Syracuse, Surprise, Denton, Roseville, Thornton, Miramar, Pasadena, Mesquite, Olathe, Dayton, Carrollton, Waco, Orange, Fullerton, Charleston, West Valley City, Visalia, Hampton, Gainesville, Warren, Coral Springs, Cedar Rapids, Round Rock, Sterling Heights, Kent, Columbia, Santa Clara, New Haven, Stamford, Concord, Elizabeth, Athens, Thousand Oaks, Lafayette, Simi Valley, Topeka, Norman, Fargo, Wilmington, Abilene, Odessa, Columbia, Pearland, Victorville, Hartford, Vallejo, Allentown, Berkeley, Richardson, Arvada, Ann Arbor, Rochester, Cambridge, Sugar Land, Lansing, Evansville, College Station, Fairfield, Clearwater, Beaumont, Independence, Provo, West Jordan, Murrieta, Palm Bay, El Monte, Carlsbad, North Charleston, Temecula, Clovis, Springfield, Meridian, Westminster, Costa Mesa, High Point, Manchester, Pueblo, Lakeland, Pompano Beach, West Palm Beach, Antioch, Everett, Downey, Lowell, Centennial, Elgin, Richmond, Peoria, Broken Arrow, Miami Gardens, Billings, Jurupa Valley, Sandy Springs, Gresham, Lewisville, Hillsboro, Ventura, Greeley, Inglewood, Waterbury, League City, Santa Maria, Tyler, Davie, Lakewood, Daly City, Boulder, Allen, West Covina, Sparks, Wichita Falls, Green Bay, San Mateo, Norwalk, Rialto, Las Cruces, Chico, El Cajon, Burbank, South Bend, Renton, Vista, Davenport, Edinburg, Tuscaloosa, Carmel, Spokane Valley, San Angelo, Vacaville, Clinton, Bend, Woodbridge.

Our Products

Browse the full product range

Our Latest Blogs

Specifications of H Fin Tubes

Parameter

Specification

Product Name

H Fin Tubes

Tube Type

Seamless / Welded

Fin Type

H Fin / Double H Fin

Manufacturing Method

High Frequency Welded (HFW)

Tube OD

19 mm – 76 mm

Tube Thickness

2 mm – 12 mm

Fin Thickness

1 mm – 5 mm

Fin Height

8 mm – 40 mm

Tube Length

Up to 18 meters

Materials

Carbon Steel, Stainless Steel, Alloy Steel, Copper Alloy

Standards

ASTM, ASME, DIN, EN, BS, JIS

Surface Finish

Black, Pickled, Painted, Coated

Testing

PMI, Hydro Test, Eddy Current, UT, Visual Inspection

H Finned Tubes Chemical Composition (Typical Carbon Steel Grade)

Element

Percentage (%)

Carbon (C)

0.26 Max

Manganese (Mn)

0.60–1.35

Silicon (Si)

0.10–0.35

Phosphorus (P)

0.035 Max

Sulfur (S)

0.035 Max

Iron (Fe)

Balance

H Fin Tubes Mechanical Properties (Typical Carbon Steel Grade)

Property

Value

Tensile Strength

485 MPa Min

Yield Strength

250 MPa Min

Elongation

22% Min

Hardness

143 HB Max

Modulus of Elasticity

200 GPa

Density

7.85 g/cm³

Types of H Fin Tubes We Manufacture

We manufacture and supply a comprehensive range of H finned tube solutions for industrial heat transfer systems.

Square H Type Fin Tube

To maximize the heating surface and improve air flow distribution, the Square H Type Fin Tube is widely used for economizer and boiler.

Steel H® / Double H® Finned Surface Tubes

The dual H shaped fins enhance heat transfer effectively while reducing foul and ash deposit.

HFW Square Fin Tube

Manufactured using High Frequency Welding (HFW), these fin tubes offer exceptional weld strength, superior thermal conductivity, and long service life.

H Finned Tube for Heat Exchangers-Boiler Tubes

H finned tubes for power plants and process heating industry, have the heat recovery in the highest level and operation in optimum operation.

Marine Boiler H-Economizer Tubes

Designed for marine applications, these finned tubes withstand high-pressure and corrosive environments while ensuring reliable heat exchange performance.

Key Features of H Fin Tubes

Our H Fin Tubes are engineered to provide outstanding performance under demanding operating conditions.

Key Features

  • Excellent heat transfer efficiency
  • Large external surface area
  • Reduced ash and dust accumulation
  • Superior weld integrity
  • High mechanical strength
  • Low pressure drop
  • Excellent corrosion resistance
  • High-temperature stability
  • Longer operational life
  • Reduced maintenance costs
  • Easy installation
  • Energy-efficient performance

Applications of H Fin Tubes

Our H Fin Tubes are widely used across numerous industrial sectors.

Industries Served

  • Power Plants
  • Thermal Power Stations
  • Waste Heat Recovery Systems
  • Industrial Boilers
  • Steam Boilers
  • Economizers
  • Air Preheaters
  • Petrochemical Plants
  • Oil & Gas Industry
  • Refineries
  • Fertilizer Plants
  • Sugar Industries
  • Chemical Processing Plants
  • Steel Plants
  • Cement Plants
  • Marine Boilers
  • HVAC Systems
  • Heat Recovery Steam Generators (HRSG)
  • Process Heating Equipment
  • Industrial Furnaces

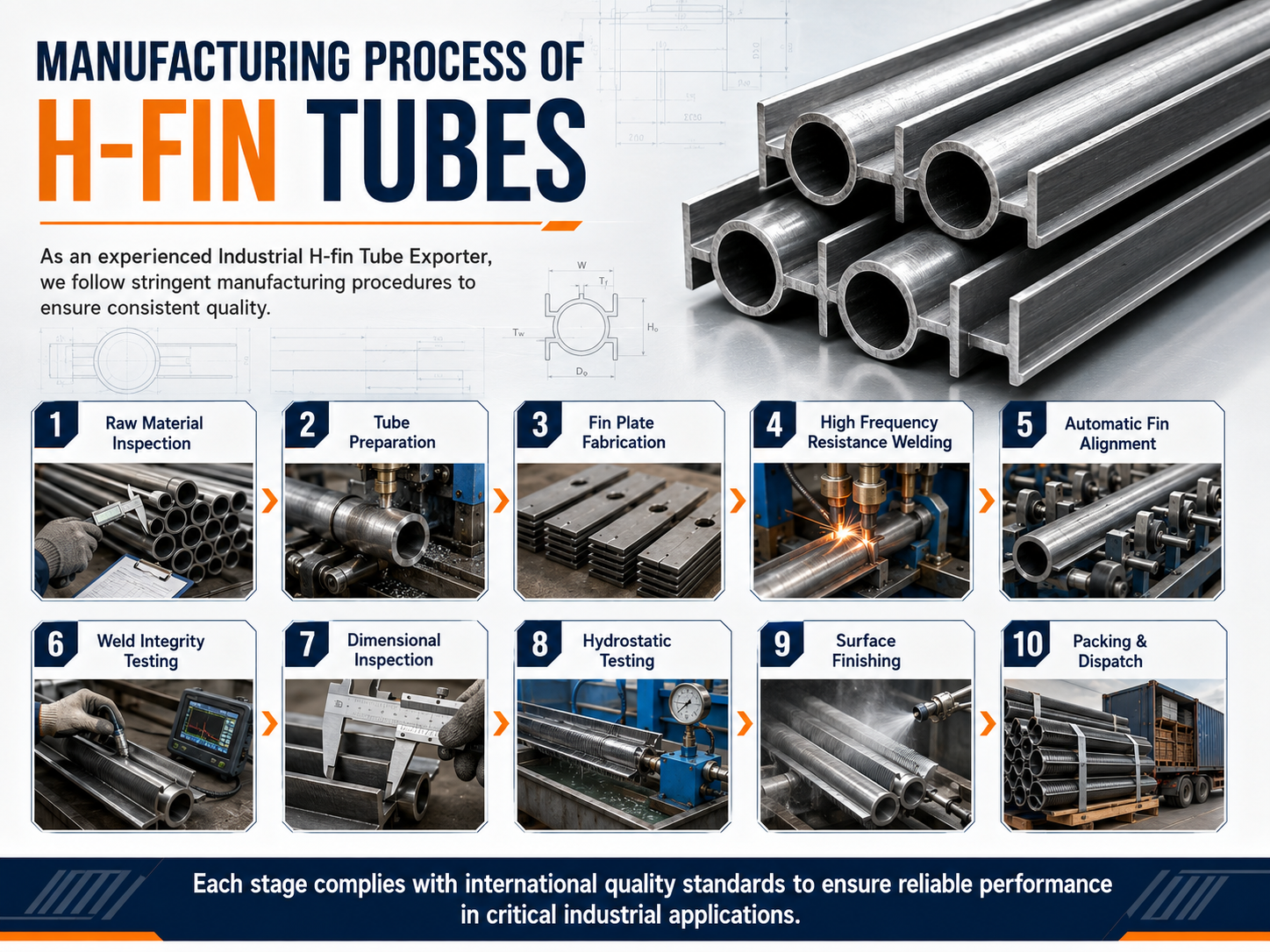

Manufacturing Process of H-Fin Tubes

As an experienced Industrial H-fin Tube Exporter, we follow stringent manufacturing procedures to ensure consistent quality.

    Manufacturing process for H-fin tubes

    Related Products

    • Finned Tubes
    • Carbon Steel Finned Tubes
    • Stainless Steel Finned Tubes
    • Alloy Steel Finned Tubes
    • Boiler Tubes
    • Heat Exchanger Tubes
    • Economizer Tubes
    • Air Preheater Tubes
    • High Frequency Welded Finned Tubes
    • Spiral Finned Tubes
    • Extruded Finned Tubes

    Why Choose Our H Fin Tubes?

    Industries worldwide rely on us because we deliver engineered solutions designed for long-term performance.

    Our advantages include:

    • Premium raw materials
    • Precision manufacturing
    • Customized dimensions
    • Competitive pricing
    • Fast delivery
    • International quality standards
    • Experienced technical support
    • Worldwide exports
    • Reliable packaging
    • Strict quality control

    Our engineering team works closely with clients to provide fin tube solutions tailored to specific operating temperatures, pressures, and heat transfer requirements.

    Request a Quote for H Fin Tubes

    Looking for a reliable High Finned Tubes Manufacturer and Supplier in India? We supply precision-engineered H Fin Tubes, H Finned Tubes, Steel H® / Double H® Finned Surface Tubes, HFW Square Fin Tubes, and Marine Boiler H-Economizer Tubes that meet international quality standards. Contact our team today for customized sizes, competitive pricing, and fast global delivery tailored to your project requirements.
